Home Products A50

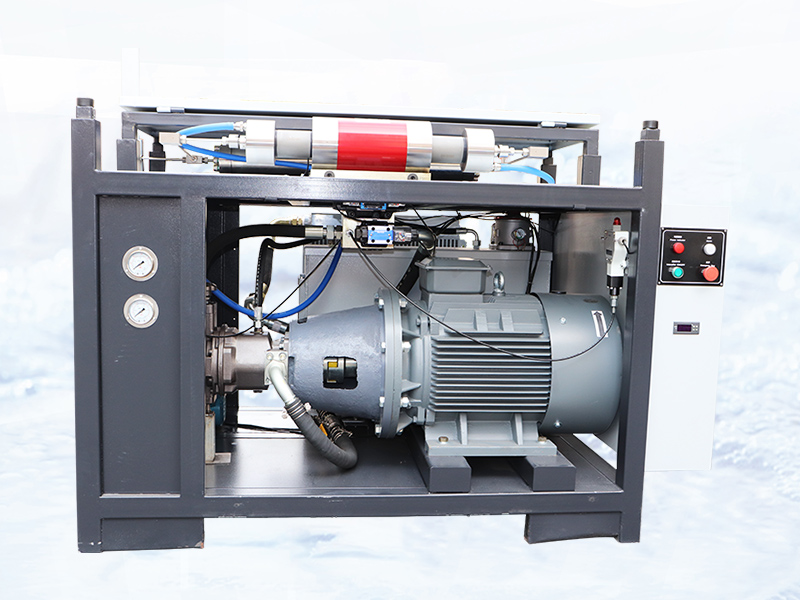

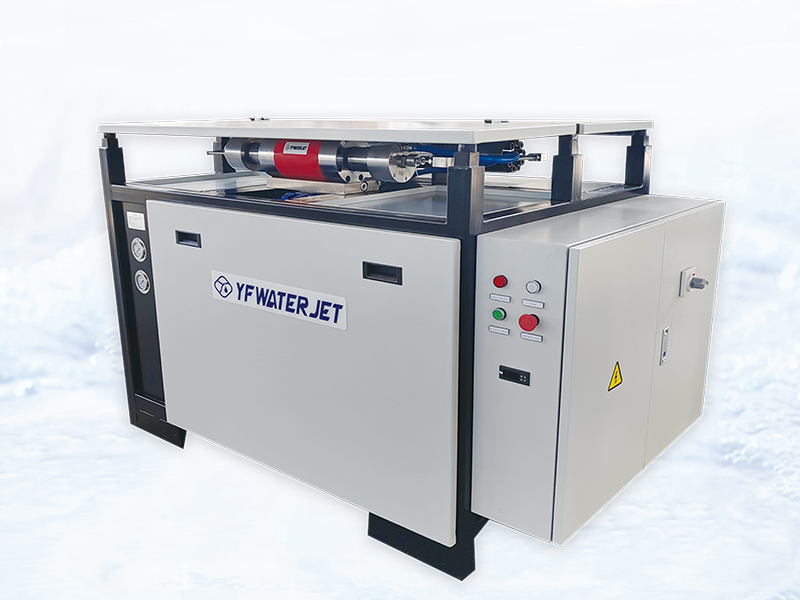

A50
A50
A50
A50
A50
A50

A50

  • Pressurization method

    Hydraulic

  • Maximum pressure

    410Mpa

  • Maximum cutting water flow

    3.8L/min

  • Maximum single nozzle diameter

    0.3mm

  • Accumulator capacity

    1.2L

  • Hydraulic oil tank capacity

    114L

  • System power

    37KW

  • Dimensions

    1800*1050*1200mm

  • Weight

    980kg

  • Features

    Efficient, safe and stable

Consult Now Tel: 400-8058-576 Email

Detailed introduction
